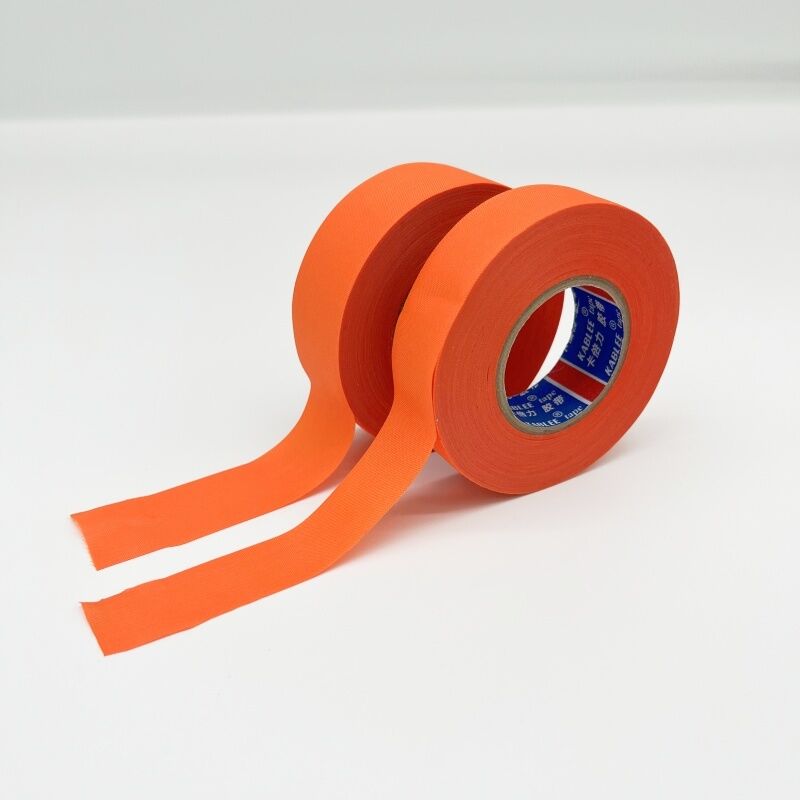

Car Wire Harness Cloth Tape KBL T03 Orange Color For Wrapping Automotive Electrial Cable

Product Description:

Automotive wire harness cloth tape deliver critical performance through specialized material formulations tailored to demanding vehicle environments. Key characteristics include:

1. ‌Material Versatility‌: Common substrates include PVC for cost-effective insulation (105°C rating), PET cloth for superior abrasion/high-temperature resistance (150°C), and nonwoven fleece for noise/vibration damping12. Eco-friendly halogen-free variants are increasingly prevalent

2. ‌Environmental Durability‌: Tapes must withstand wide temperature ranges (-40°C to 150°C), particularly near engines
   . They resist moisture, UV degradation, automotive fluids (fuels, oils), and corrosive chemicals to ensure long-term integrity

3. ‌Mechanical & Electrical Performance‌: Essential properties encompass sufficient tensile strength (typically 15-30 N/10mm), elongation (150-300%), consistent adhesion (peel strength per ISO 29862), and controlled unwinding force
   . Dielectric strength (>40 kV/mm) provides reliable electrical insulation

4. ‌Safety & Compliance‌: Flame retardancy meeting standards like UL 510 or VW60360 prevents fire propagation. Low VOC/SVOC emissions and fogging resistance are mandated for cabin air quality. Abrasion resistance protects against wear from vibration and sharp edges

Features:

• Product Name: Automotive Wire Harness Cloth Tape
• Adhesion: 25 Oz/in
• Tensile Strength: 25 Lbs/in
• Color: Black or Orange
• Width: 9/19/25/32/38/50mm ±0.2
• Adhesive: Acrylates Copolymer
• Speciality: Engine wire harness wrap, Fabric wiring harness cloth tape

Technical Parameters:

Applications:

Kablee P06 Automotive Wire Harness Cloth Tape is the perfect solution for automotive wiring harness taping and engine wire harness wrapping requirements. This wire wrap tape is made from high quality Acrylates Copolymer which offers excellent chemical resistance and adhesion of 25 Oz/in. The tape is available in black and can withstand temperatures ranging from -40°F to 105°F. This makes it suitable for automotive wiring harnesses and engine wire harnesses. The superior features and benefits of Kablee P06 Automotive Wire Wrap Tape makes it the ideal choice for auto wire harness wrap applications.

Harness Tape Usage Method :

Harness tape is crucial for protecting automotive wire harnesses, ensuring insulation and durability against wear‌. The standard method involves these steps

1. Preparation‌: Gather tools like electrical tape, scissors, and a clean workspace. Clean the wire harness thoroughly to remove dust and debris for better adhesion‌.

2. Starting the Wrap‌: Begin at the harness end by overlapping the tape tightly twice. Maintain a consistent overlap of 1/2 to 1/3 the tape width (e.g., 6-10mm for 19mm tape) to avoid gaps or excessive bulk‌.

3. Wrapping Process‌: Pull the tape taut while wrapping along the harness, using smooth motions to ensure full coverage. Avoid over-tension to prevent damage, and layer evenly for uniform protection‌.

4. Finishing‌: End with another double overlap, cut the tape cleanly, and press firmly to secure it. Check for no loose ends, wrinkles, or exposed wires‌.

5. Inspection‌: Verify tightness, coverage, and compliance with specifications like size and alignment for reliability‌.
